CUPLOCK is the world’s most widely used system scaffold. It is providing general access and supporting vertical loads.

CUPLOCK’s key feature is its unique circular node point which allows up to 4 horizontals to be connected to a vertical in a single fastening action - making it probably the fastest and safest system available.

CUPLOCK components allows it to be used with traditional scaffold boards or battens. It can be used to create a huge range of access and support structures, staircase towers, circular scaffolds, loading towers and mobile towers.

Accessories Components:

• Adjustable Base Jacks are made of steel plate, screw jack and steel handle.
• Adjustable Base Jacks available in two types (Hollow and solid).
• Adjustable Base Jacks provide method of adjustment for Cuplock structure. It fits directly into the Cuplock Standard.

Adjustable Universal Jacks

Accessories Components:

• Adjustable Universal Jacks are made of a screw jack and steel handle.
• Adjustable Universal Jacks are available in two types (Hollow and solid).
• Adjustable Universal Jacks are inserted into the top of the cuplock standards.
• Adjustable Universal Jacks are providing method of adjustment of Cuplock structure by the socket base.

Adjustable U Head jacks:

• Adjustable U-Head Jacks are made of a “U” shaped steel plate, screw jack and steel handle.
• Adjustable U-Head Jacks are available in two types (Hollow and solid).
• Adjustable U-Head Jacks are providing support for primary beams (traditional timber, steel, H20 beam and aluminum beam).
• Adjustable U-Head Jacks are inserting into the top of the cuplock standards.

H20 BEAMS:

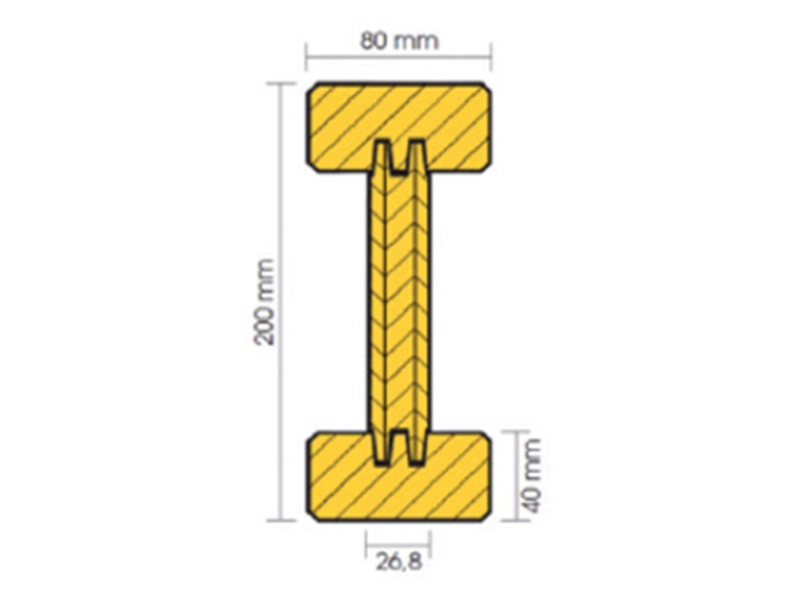

• The H20 Formwrok Timber Beam is a solid l-beam used for concrete formwork construction.
• The height of beam is 200mm and available in different standard lengths.
• The webs made of 3 ply laminated solid wood panels ensuring use in all climate zone.
• The chords are made of superior quality smoothly surfaced and slightly chamfered.
• H20 Beams are used as primary and secondary beams for Cuplock FalseWork applications.

Socket base:

1. Permissible bending moment (M) = 0.50 t.m
2. Permissible shear force (Q) = 1.10 t
3. Section modulus (z)= 461 cm3
4. Geometrical moment on inertia (l)= 4613 cm4

Sketch Applications:

Another application of Cuplock Falsework used to shuttering beams of slab floor by using Double Cantilevers for outer beam brackets for inner beams.

CUPLOCK FALSEWORK

is a new way of shoring and support the concrete slabs in record time with less labor required rather than the traditional method of shoaring and support. Cuplock Falsework use different types of primary and secondary beams as needed allowing the possibility of using existing material in the sets.

• Primary : H20 Beam
• Secondary: H20 beam

• Primary : Aluminum Beam
• Secondary : Aluminum Beam
