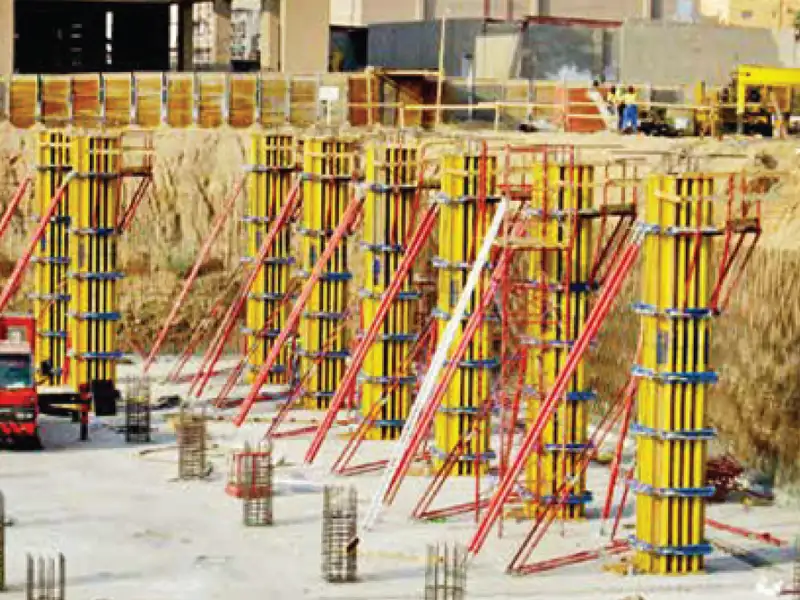

V.M.C. System :

• V.M.C. is a man-handled column system.
• It is very suitable when crane is not available.
• The flexibility of column cross section - 5 cm increments-makes it easy to be adjusted without re-assembly.
• For safety, the system is equipped with a concreting platform.

H20 & Soldiers System:

• H20 & Soldiers System is the most flexible system and the most cost effective solution for wall formwork.
• The element size-grid and tie-hole pattern provide the ad aptability needed to accommodate architectural demands.
• The high flexure stiffness of H20 wooden beam and Steel Soldiers can often be used to speed up shuttering by optimizing the formwork panels and minimizing the number of tie points.
• From industrial structures to housing and from bridge abutments to retaining walls, H20 & Soldiers shutters any layout and height up to 18 m with a single unit.

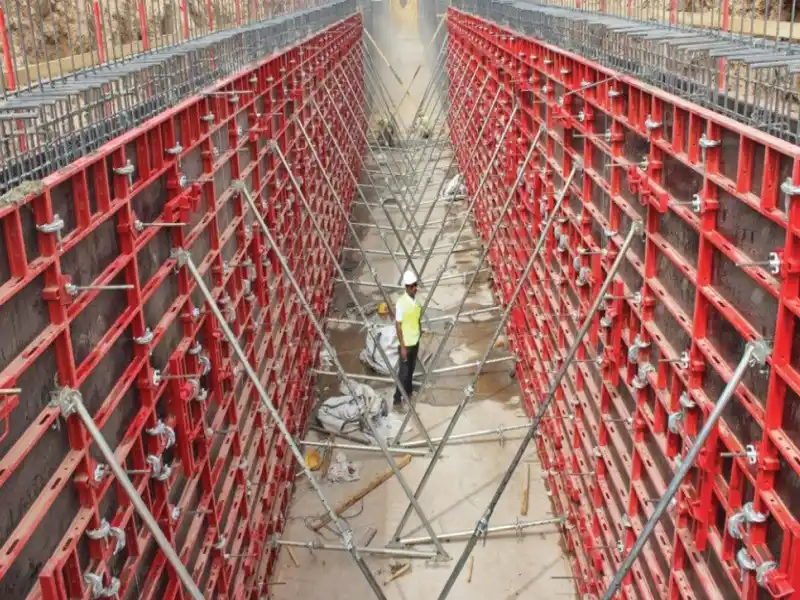

Eco-form System:

• Eco-Form System is a light weight panel innovative system where a range of panels and accessories are responsible for quick and economical framing of any vertical concrete shape in the buildings.
• Moreover, due to the lightness and high- quality materials of the Eco-Form System, it could be either manual or crane handled for extraordinary performance.
• Eco Form System is the best solution for foundations, cellar tanks, low retaining walls, parapets and small areas. This perfection returns mainly to the sturdy elements which are actually light in weight and handy enabling Eco Form System to be on top of the solutions used for such applications.
• Moreover, what makes it easier to be used in high walls is the flexibility of the panels to be stacked upright or sideways to fit the intended purpose smoothly.

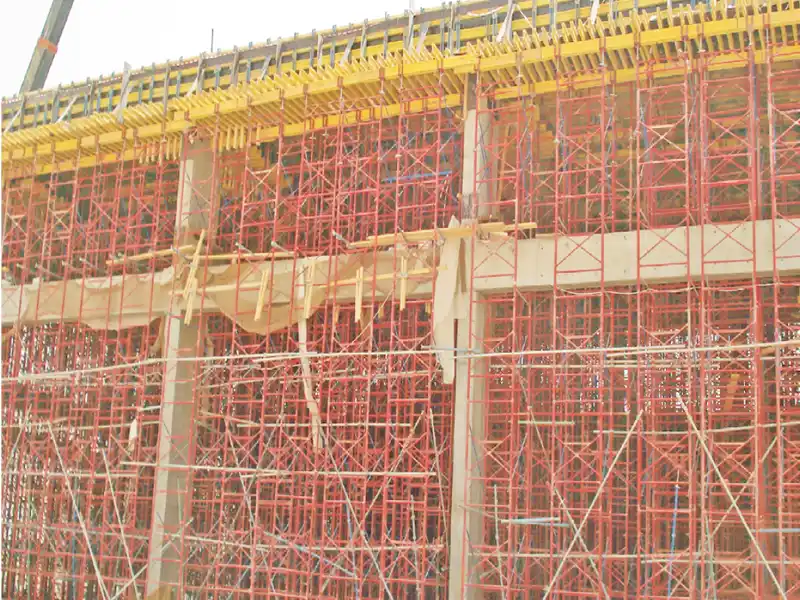

Shorebrace:

• It is characterized bythe use of one basic size of shorebrace frame (180 cm high and 120 cm wide) combined with cross bracesin order to obtain economic spacing of frames. Moreover, the telescopic shorebrace frame gives various height adjustments, which can be obtain edwith a minimum of component partsto offer high carrying load capacity towers for heavy slab construction atall heights.
• In addition, the telescopic shorebrace frame is combined with afully solid jacks at top and bottom of towers.
• Vertical tube diameter of 60.3mm combined with the telescopic shorebrace frame with an outside tube diameter of 48.3 mm offers Maximum safe working load pervertical leg of 5.4 tons.

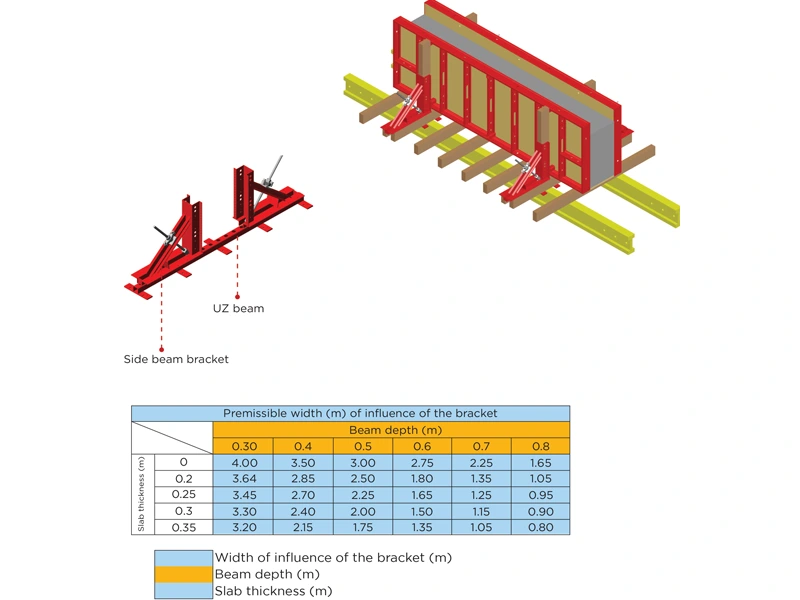

Beam Formwork (UZ):

• With the UZ beam and bracket, beams are continously formed.
• No ties are required for beams of depth up to 80 cm.
